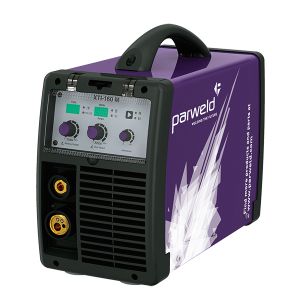

Parweld XTI 160M 240V Inverter MIG Machine

Key Features
• 240V Single Phase
• Compact and Portable
• MIG Welding with Arc Force Adjustment
• Dual Digital display
• Adjustable Down Slope for TIG Welding
• Accepts 5Kg (200mm) Spools
• IP23S
• Supplied with Regulator and MIG Torch
• 2T/4T trigger latching
• 2 Years Return to Base Warranty

Technical Data
Input Power Voltage 230V (201-253V)
Weight 12kg
Dimensions 465mm x 214mm x 365mm
Duty Cycle 160A @ 40%
Frequency (Hz) 50 – 60 Hz
Input Rating (KVA) 5.1 (MMA)
Open Circuit Voltage (OCV) 42V
Input Current 16A
Output Current Range (A) 50-160A
Rated Output Voltage 13.5-22V
No Load Power (W) 50W
Efficiency (%) 85%
Power Factor 0.75
Insulation / Protection Class IP23
